Model query

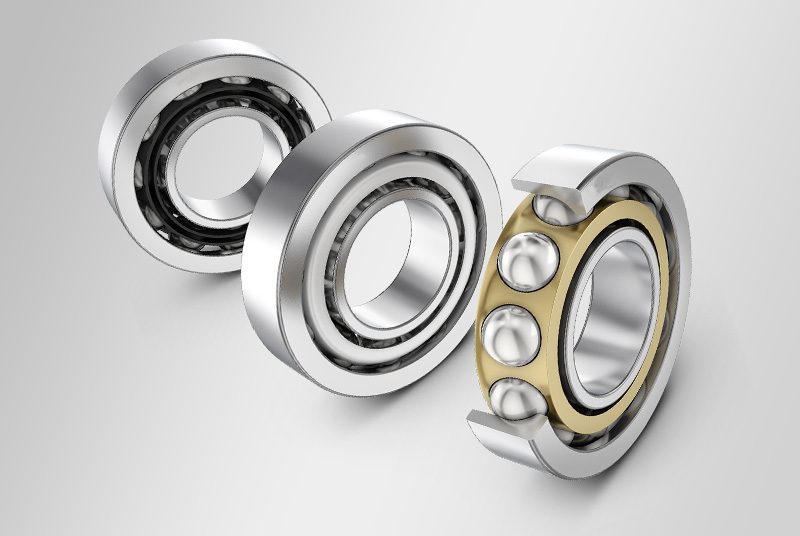

··Angular contact ball bearing
Angular contact ball bearings mainly bear large unidirectional axial loads, and the greater the contact angle, the greater the load capacity. The cage material is steel, brass or engineering plastic, and the molding method is stamping or turning, which is...
Part Number |
d - Bore |
D - Outer Diameter |
B - Width |
Cr - Dynamic Radial Rating |
Cor - Static Radial Rating |
Reference speed |
Limiting speed |
|---|---|---|---|---|---|---|---|
| 7003AC | 17 mm | 35 mm | 10 mm | 6.75 N | 4.15 N | - | Angular contact ball bearing |
| 7207C | 35 mm | 72 mm | 17 mm | 30.4 N | 20.1 N | - | Angular contact ball bearing |
| 7310B | 50 mm | 110 mm | 27 mm | 64.4 N | 44.3 N | - | Angular contact ball bearing |
| 7014AC | 70 mm | 110 mm | 20 mm | 42.7 N | 39.4 N | - | Angular contact ball bearing |
| 7317B | 85 mm | 180 mm | 41 mm | 137 N | 112 N | - | Angular contact ball bearing |
| 7221AC | 105 mm | 190 mm | 36 mm | 149 N | 132 N | - | Angular contact ball bearing |
| S718/1180 | 1180 mm | 1420 mm | 106 mm | 850 N | 3580 N | - | Angular contact ball bearing |
| 3312 | 60 mm | 130 mm | 54 mm | 125 N | 132 N | - | Angular contact ball bearing |
| QJF208 | 40 mm | 80 mm | 18 mm | 36 N | 32 N | - | Angular contact ball bearing |
| QJ1018 | 90 mm | 140 mm | 24 mm | 102 N | 130 N | - | Angular contact ball bearing |
| QJ236 | 180 mm | 320 mm | 52 mm | 392 N | 545 N | - | Angular contact ball bearing |
| 7030AC | 150 mm | 225 mm | 35 mm | 137 N | 154 N | - | Angular contact ball bearing |
| 3208A-2RS | 40 mm | 80 mm | 30.2 mm | - N | - N | - | Angular contact ball bearing |
| 3214A | 70 mm | 125 mm | 39.7 mm | 94.5 N | 82.6 N | - | Angular contact ball bearing |
| 3220A | 100 mm | 180 mm | 60.3 mm | - N | - N | - | Angular contact ball bearing |
| 3308A | 40 mm | 90 mm | 36.5 mm | 62.7 N | 45.4 N | - | Angular contact ball bearing |
| 3310A-RS | 50 mm | 110 mm | 44.4 mm | - N | - N | - | Angular contact ball bearing |
| 3313A-RS | 65 mm | 140 mm | 58.7 mm | - N | - N | - | Angular contact ball bearing |
| 7000C | 10 mm | 26 mm | 8 mm | 5.3 N | 2.45 N | - | Angular contact ball bearing |
| 7000AC | 10 mm | 26 mm | 8 mm | 5 N | 2.35 N | - | Angular contact ball bearing |
