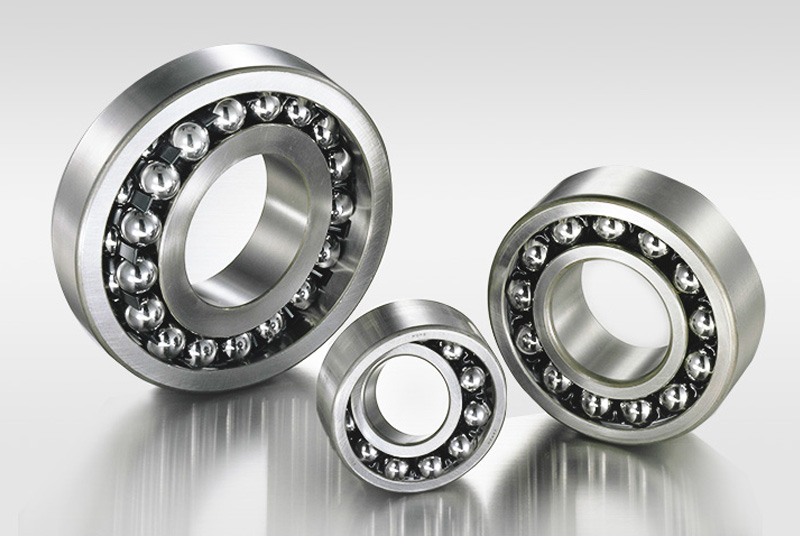

··Self aligning ball bearing
The self-aligning ball bearing has two structures of cylindrical hole and conical hole, and the material of the cage is steel plate, synthetic resin, etc. Its characteristic is that the outer ring raceway is spherical, with automatic centering, which can ...
Part Number |
d - Bore |
D - Outer Diameter |
B - Width |
Cr - Dynamic Radial Rating |
Cor - Static Radial Rating |
Reference speed |
Limiting speed |
|---|---|---|---|---|---|---|---|
| 1210K+H210 | 50 mm | 90 mm | 58 mm | 22.7 N | 8.1 N | - | Self aligning ball bearing |
| 1312K+H312 | 55 mm | 130 mm | 31 mm | - N | - N | - | Self aligning ball bearing |
| 2207K+H307 | 30 mm | 72 mm | 23 mm | - N | - N | - | Self aligning ball bearing |
| 2222K+H322 | 100 mm | 200 mm | 53 mm | - N | - N | - | Self aligning ball bearing |
| 1200TNI | 10 mm | 30 mm | 9 mm | 5.4 N | 1.2 N | - | Self aligning ball bearing |
| 2302TNI | 15 mm | 42 mm | 17 mm | 11.8 N | 2.9 N | - | Self aligning ball bearing |
| 2207 | 35 mm | 72 mm | 23 mm | 21.6 N | 6.6 N | - | Self aligning ball bearing |
| 1210 | 50 mm | 90 mm | 20 mm | 22.7 N | 8.1 N | - | Self aligning ball bearing |
| 2312 | 60 mm | 130 mm | 46 mm | 87.2 N | 28.3 N | - | Self aligning ball bearing |
| 1215 | 75 mm | 130 mm | 25 mm | 38.8 N | 15.7 N | - | Self aligning ball bearing |
| 2317 | 85 mm | 180 mm | 60 mm | 141 N | 51.5 N | - | Self aligning ball bearing |
| 2312K+H2312 | 55 mm | 130 mm | 46 mm | - N | - N | - | Self aligning ball bearing |
| 1221 | 105 mm | 190 mm | 36 mm | 77 N | 34 N | - | Self aligning ball bearing |
| 1203K+H203 | 17 mm | 47 mm | 14 mm | - N | - N | - | Self aligning ball bearing |
| 1204K+H204 | 20 mm | 47 mm | 40 mm | 9.9 N | 2.6 N | - | Self aligning ball bearing |
| 1205K+H205 | 25 mm | 52 mm | 44 mm | 12.1 N | 3.3 N | - | Self aligning ball bearing |
| 1206K+H206 | 30 mm | 62 mm | 48 mm | 15.6 N | 4.65 N | - | Self aligning ball bearing |
| 1207K+H207 | 35 mm | 72 mm | 52 mm | 15.8 N | 5.1 N | - | Self aligning ball bearing |
| 1208K+H208 | 40 mm | 80 mm | 56 mm | 19.2 N | 6.5 N | - | Self aligning ball bearing |
| 1209K+H209 | 45 mm | 85 mm | 58 mm | 21.8 N | 7.35 N | - | Self aligning ball bearing |
