Thrust ball bearing-Shandong Haiding Bearing Co., Ltd.

Model query

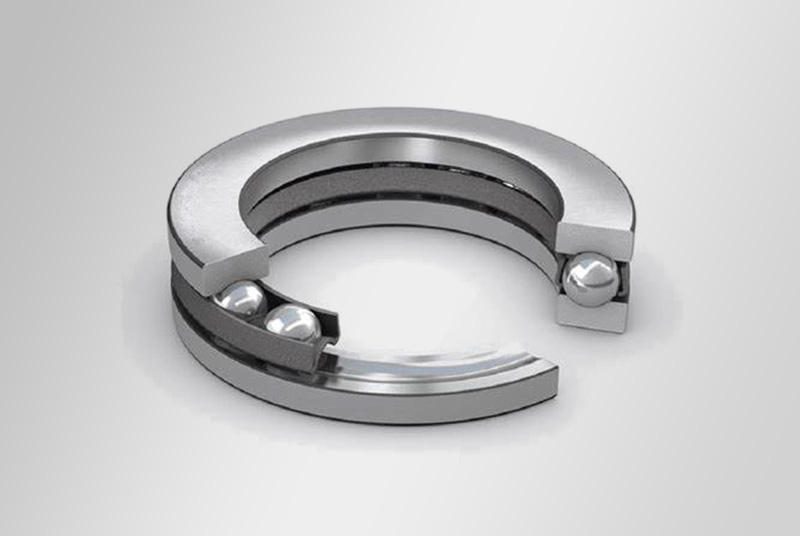

Thrust ball bearings are designed to withstand thrust loads during high-speed operation, and consist of a washer-like ferrule with a ball-rolling raceway groove. Since the ferrule is in the form of a seat cushion, the thrust ball bearing is divided into t...

Part Number	d - Bore	D - Outer Diameter	B - Width	Cr - Dynamic Radial Rating	Cor - Static Radial Rating	Reference speed	Limiting speed
51107	35 mm	52 mm	12 mm	20.4 N	44.7 N	-	Thrust ball bearing
51152H	260 mm	320 mm	45 mm	— N	— N	-	Thrust ball bearing
51238	190 mm	270 mm	62 mm	298 N	1010 N	-	Thrust ball bearing
51318	90 mm	155 mm	50 mm	213 N	524 N	-	Thrust ball bearing
51412	60 mm	130 mm	51 mm	201 N	397 N	-	Thrust ball bearing
234430B	150 mm	225 mm	90 mm	- N	- N	-	Thrust ball bearing
52408	40 mm	90 mm	65 mm	113 N	205 N	-	Thrust ball bearing
52415	75 mm	160 mm	115 mm	252 N	560 N	-	Thrust ball bearing
53200U	10 mm	26 mm	13 mm	12.7 N	17.1 N	-	Thrust ball bearing
53307U	35 mm	68 mm	28 mm	55.5 N	105 N	-	Thrust ball bearing
53318U	90 mm	155 mm	59 mm	213 N	524 N	-	Thrust ball bearing
53411	55 mm	120 mm	50.5 mm	178 N	359 N	-	Thrust ball bearing
54206	30 mm	52 mm	32.6 mm	28.1 N	54.3 N	-	Thrust ball bearing
51100	10 mm	24 mm	9 mm	10 N	14 N	-	Thrust ball bearing
51101	12 mm	26 mm	9 mm	10.3 N	15.4 N	-	Thrust ball bearing
51102	15 mm	28 mm	9 mm	10.5 N	16.8 N	-	Thrust ball bearing
51103	17 mm	30 mm	9 mm	10.8 N	18.2 N	-	Thrust ball bearing
51104	20 mm	35 mm	10 mm	14.2 N	24.7 N	-	Thrust ball bearing
51105	25 mm	42 mm	11 mm	19.5 N	37.2 N	-	Thrust ball bearing
51106	30 mm	47 mm	11 mm	20.4 N	42.2 N	-	Thrust ball bearing
