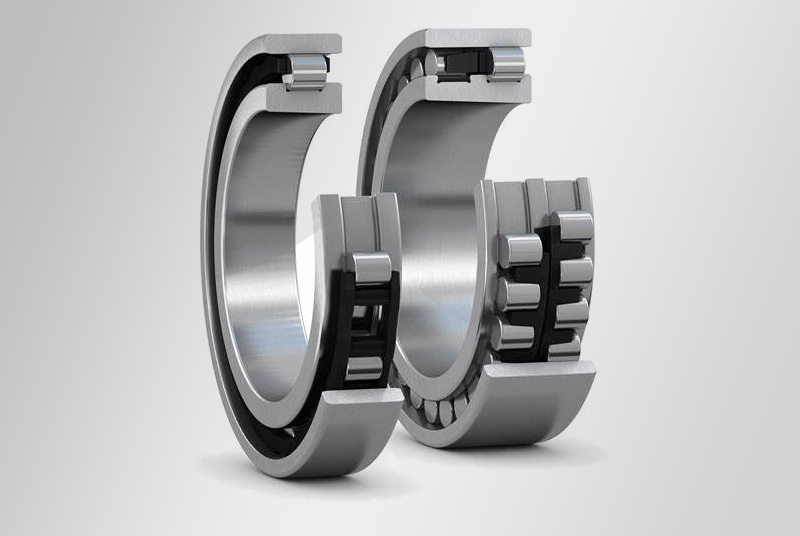

··Cylindrical Roller Bearings
The rolling elements are radial rolling bearings with cylindrical rollers. The internal structure of cylindrical roller bearing adopts rollers arranged in parallel, and spacers or spacers are installed between the rollers, which can prevent the inclinatio...
Part Number |
d - Bore |
D - Outer Diameter |
B - Width |
Cr - Dynamic Radial Rating |
Cor - Static Radial Rating |
Reference speed |
Limiting speed |
|---|---|---|---|---|---|---|---|
| NU1004 | 20 mm | 42 mm | 12 mm | 10.5 N | 9.2 N | - | Cylindrical roller bearing |
| NU1008 | 40 mm | 68 mm | 15 mm | 21.2 N | 22 N | - | Cylindrical roller bearing |
| NU411 | 55 mm | 140 mm | 33 mm | 128 N | 132 N | - | Cylindrical roller bearing |
| NU315E | 75 mm | 160 mm | 37 mm | 228 N | 260 N | - | Cylindrical roller bearing |
| NU2217E | 85 mm | 150 mm | 36 mm | 205 N | 272 N | - | Cylindrical roller bearing |
| NU1021 | 105 mm | 160 mm | 26 mm | 91.5 N | 122 N | - | Cylindrical roller bearing |
| NU328 | 140 mm | 300 mm | 62 mm | 545 N | 690 N | - | Cylindrical roller bearing |
| NU1034 | 170 mm | 260 mm | 42 mm | 255 N | 365 N | - | Cylindrical roller bearing |
| NJ308E | 40 mm | 90 mm | 23 mm | 76.8 N | 77.8 N | - | Cylindrical roller bearing |
| NJ212E | 60 mm | 110 mm | 22 mm | 89.8 N | 102 N | - | Cylindrical roller bearing |
| NJ415 | 75 mm | 190 mm | 45 mm | 250 N | 272 N | - | Cylindrical roller bearing |
| NJ319E | 95 mm | 200 mm | 45 mm | 315 N | 380 N | - | Cylindrical roller bearing |
| NJ324 | 120 mm | 260 mm | 55 mm | 440 N | 552 N | - | Cylindrical roller bearing |
| NJ232 | 160 mm | 290 mm | 48 mm | 405 N | 552 N | - | Cylindrical roller bearing |
| NJ2244 | 220 mm | 400 mm | 108 mm | 1360 N | 2330 N | - | Cylindrical roller bearing |
| NUP306E | 30 mm | 72 mm | 19 mm | 49.2 N | 48.2 N | - | Cylindrical roller bearing |
| NUP410 | 50 mm | 130 mm | 31 mm | 120 N | 120 N | - | Cylindrical roller bearing |
| NUP2215E | 75 mm | 130 mm | 31 mm | 155 N | 205 N | - | Cylindrical roller bearing |
| NUP2319 | 95 mm | 200 mm | 67 mm | 3700 N | 500 N | - | Cylindrical roller bearing |
| NUP326 | 130 mm | 280 mm | 58 mm | 492 N | 620 N | - | Cylindrical roller bearing |
